Description

6″ PXCYL CYLINDER

Quick Facts

  • SelectDrive Technology – 3 defined light levels
  • Comprehensive mounting choices
  • Optimal flexibility with changeable optics
  • A shallow design and refined finish
  • Standard High CRI 90 with CRI 97 option
  • 0-10V or forward and reverse phase dimming
  • Additional controls options available
  • Proudly assembled in the US and customizable

Optimal flexibility
Industry leading field-selectable lumen output, five field changeable optical distributions, and wide range of dimming options.

Comprehensive mounting choices
Multiple mounting options means more customization. From artistic to purely utilitarian, PXCYL is suitable for any commercial or residential applications.

Smooth and subtle appearance
A shallow design and refined finish offer a simplistic yet polished aesthetic.

3 Lumen Packages

PXCYL-08

Note: Small light engine is available for 2″, 4″, 6″ & 8″ cylinders. Medium light engine is available for 4″, 6″ & 8″ cylinders. Large light engine is available for 6″ & 8″ cylinders.

Additional Controls

Standard Drivers

Driver & Control Options

Various Colors

Cylinder Finishes

Reflector Colors

Please contact factory for customized finish and reflector options

PXCYL-13

Matt White

PXCYL-14

Matt Black

PXCYL-15

Matt White

PXCYL-16

Clear

PXCYL-17

Customized

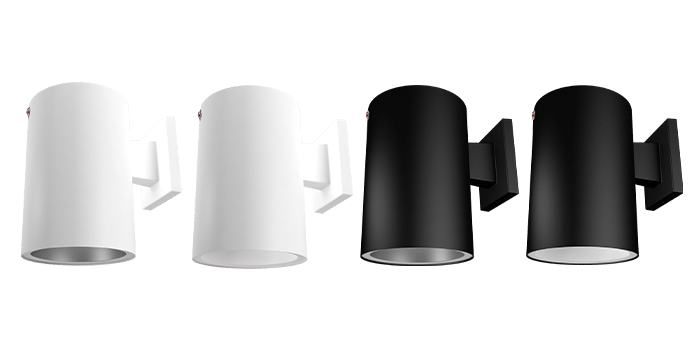

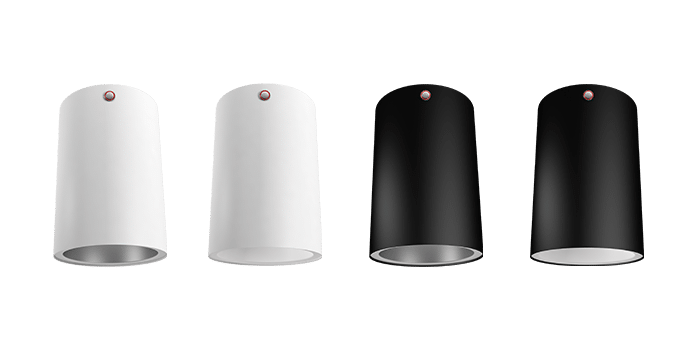

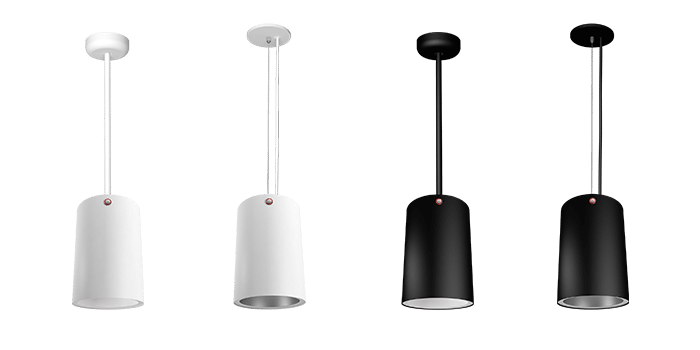

Comprehensive Mounting Options

Multiple Sizes

5 Beam Angles

Deep Cutoff

PXCYL-18-1

Superior Color Accuracy

TRUE CHORMA technology, has the highest color accuracy standard in the market. Rest assured that new spaces lit with PXCYL cylinder downlight powered by TRUE CHROMA will look their best.

Contact Us (866) 774-5433

Follow Us

Facebook
Twitter
YouTube
LinkedIn

Additional information

modelnumber

PXCYL6/xx/LEL90xx/KDIM010V/xx/xx/xx, PXCYL6/xx/LEL90xx/KDIM120V/xx/xx/xx, PXCYL6/xx/LEM90xx/KDIM010V/xx/xx/xx, PXCYL6/xx/LEM90xx/KDIM120V/xx/xx/xx, PXCYL6/xx/LES90xx/KDIM010V/xx/xx/xx, PXCYL6/xx/LES90xx/KDIM120V/xx/xx/xx

color

White, Black

warranty

5 Year

cct

2700K, 3000K, 3500K, 4000K, 5000K

lumens-lm

selectable, 1000, 1500, 2000, 2500, 3000, 4000, 500, 5000, 700

lpw

80, 85, 90, 95

beam-angle

 75°, 15°, 25°, 40°, 60°

cri-typ

97, 90

dim

Yes, 0-10V, 120V, TRIAC/ELV

life-hrs

50,000

voltage

120V, 120-277V

encl

No

es

Yes

ja8

Yes

dlc

No

wet-location

Yes

finish

Black, White

dimension

6"

power

25.5W, 31.5W, 37.5W, 48.5W, 13W, 18W, 6.5W, 60W, 8.5W

new

Yes
