Description

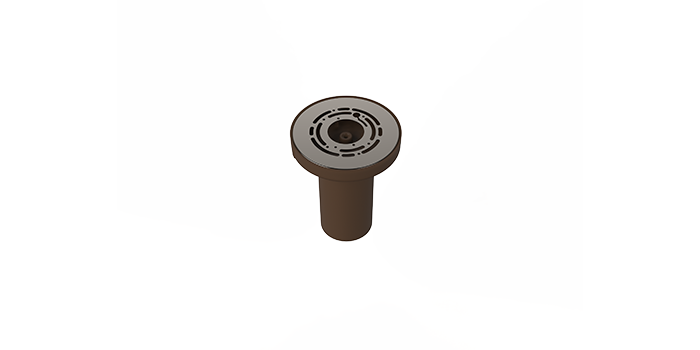

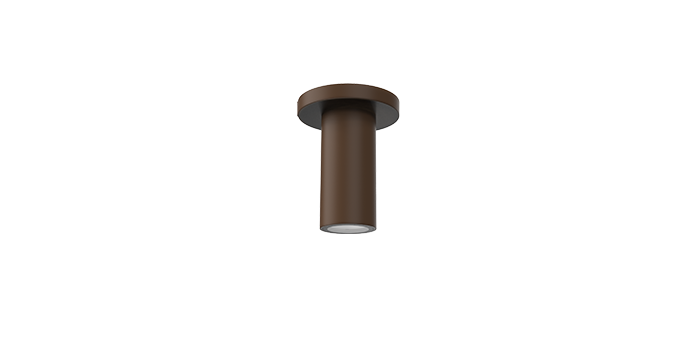

3″ EXCYL SURFACE MOUNTED
Sales Sheet
Quick Facts
- Compact design with fully embedded settings
- Three field selectable color temperatures
- Three field selectable power output levels
- Integrated photocell on wall mounted series
- Available in 3", 4" and 6" sizes
- Standard bronze finish with customized options
- 4 different beam options
- Build for durability and reliability in challenging outdoor environments
Outdoor Illumination Simplified
A versatile series of outdoor usage surface-mounted and wall-mounted cylinders that simplifies specification by integrating all settings into a single SKU, while providing clean and precise beams with optional light distributions.
3 CCTs and 3 Lumens Settings Embedded In One Product
Integrated CCT switch for field selectable color temperatures in 3000K, 3500K and 4000K. Select the perfect CCT to complement your space. Adjust it on-site to create the desired ambiance and highlight textures or architectural features.
Integrated power switch for field selectable High, Medium and Low light output levels. Choose from a total lumen range of 600 to 3,500 lumens to customize your space. Achieve the ideal light output by optimizing the settings. The up and down lumens are evenly distributed at a 50/50 ratio.
Integrated Photocell on Wall Mounted Series
Seamlessly integrated into the wall bracket for a superior aesthetic. Equipped with a standard override switch for added convenience
Direct-Indirect Illumination Simplified
The unique EXCYL design combines both indirect and direct light sources within a compact wall-mounted cylinder profile, delivering clean beams for both types of illumination. The product can be configured for direct-indirect, direct-only, or indirect-only lighting to perfectly meet the specific needs of the space.
4 Different Beam Options
Benefit from a selection of 4 beam angles 15°, 25°, 40° & 60°. Illuminate your wall or floor with clean beams and excellent cutoff and glare light control.
Spot 15°
Very Narrow 25°
Narrow 40°
Medium 60°
Build for Durability and Reliability in Challenging Outdoor Environments
EXCYL is designed to work in a wide ambient temperature range (-40°C to +40°C) with an IP65 rating, ensuring durability and reliability in challenging outdoor environments.
