Quick Facts
- DualDim - Suitable for 0-10V & 120V TRIAC/ELV
- Innovative lock cover for CCT and power settings
- Field selectable CCTs and power levels
- Suitable for new construction & remodel installations
- Specify further with multiple accessories
- Wet Location, IC and Airtight Rated
- L70 calculated lifetime of 100,000 hours
- Deep recessed lightsource, reduced glare
- Higher lumen output option available for higher ceiling
- NUROAir bluetooth controls system compatible
Select Your Settings. Secure the FIT.
SELECTFIT G3 from GREEN CREATIVE brings greater flexibility to your retrofit project or new construction application while maintaining the excellent performance and quality. With a total of 180 field installable SKUs packed in only 6 product SKUs, this new and improved lighting family still offers integrated CCT and lumen output selections. For additional flexibility, the SELECTFIT G3 series features DualDim technology and a full set of accessories.
Quality You Trust. Simplicity You Need.

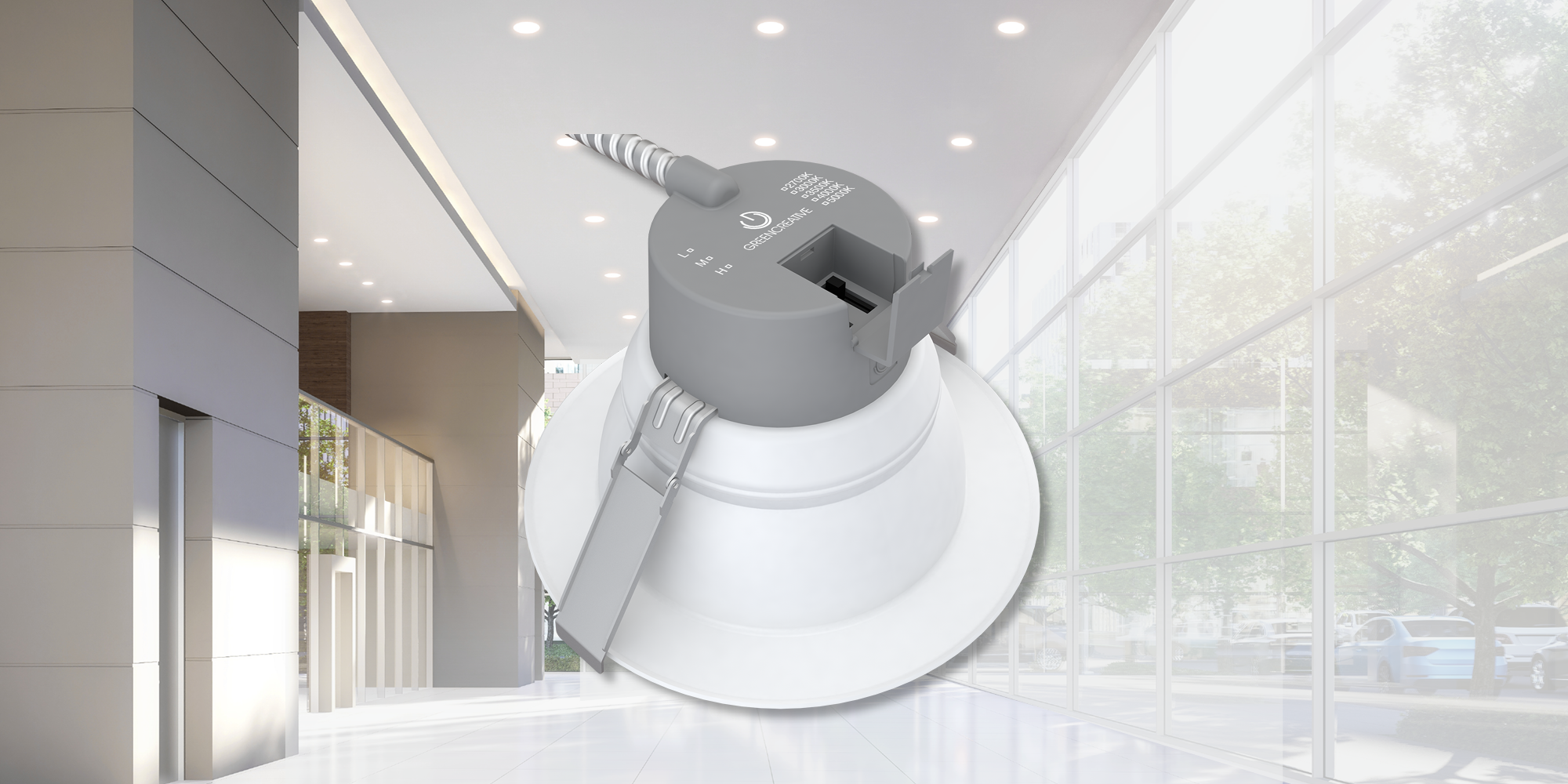

SELECTFIT features a die cast heat sink maximizing passive thermal management for high max ambient temperatures. The operating range is -40°F to 113°F (-40°C to 45°C) on all models and IC rating on most models. All models feature Wet location and certified air-tight ratings for maximum adaptability. Proprietary spring action clips enable direct installation in 1/2″ to 2″ ceiling thicknesses and field accessibility below the ceiling for easy install and service.
Soothing Pure Light

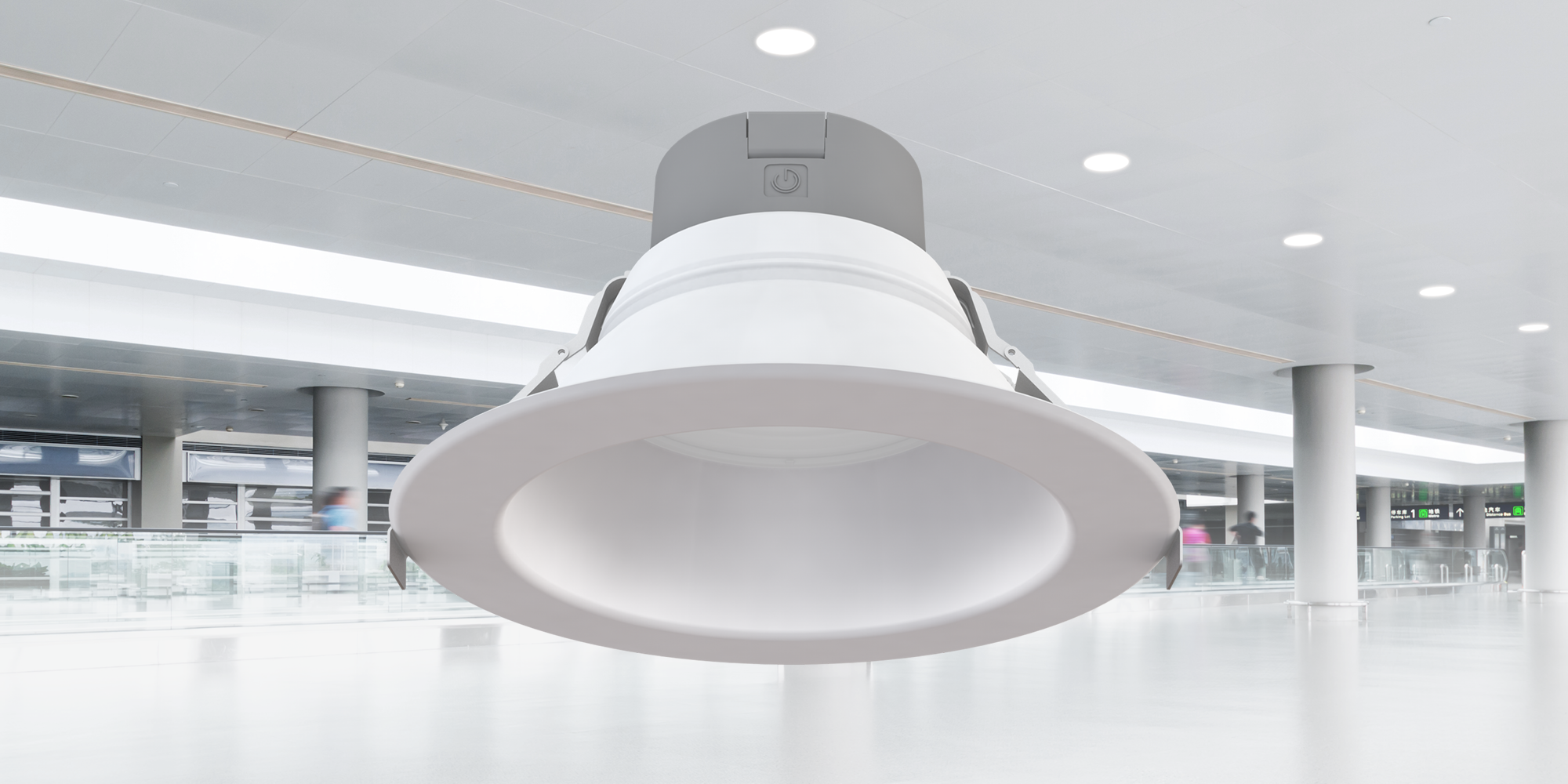

A smooth and uniform lighting distribution, offered with an LED binning within 3 SDCM maximum, in minimum 90 CRI, with calculated L70 of 100,000hrs+ for impeccable uniformity and incredible color rendering over the life of the SELECTFIT fixture.

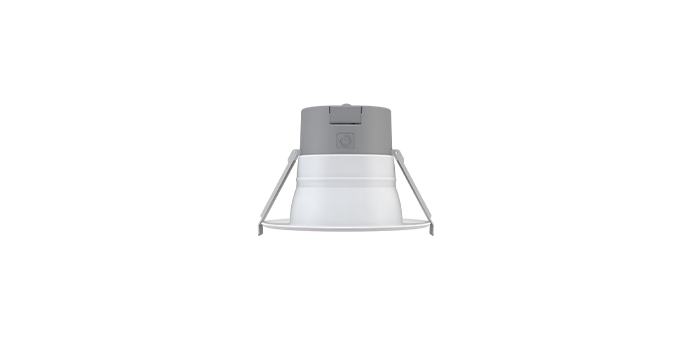

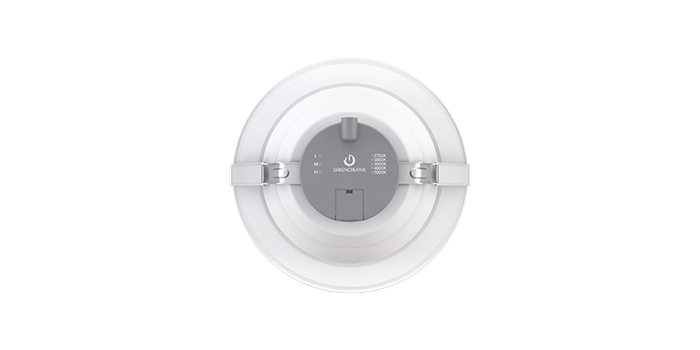

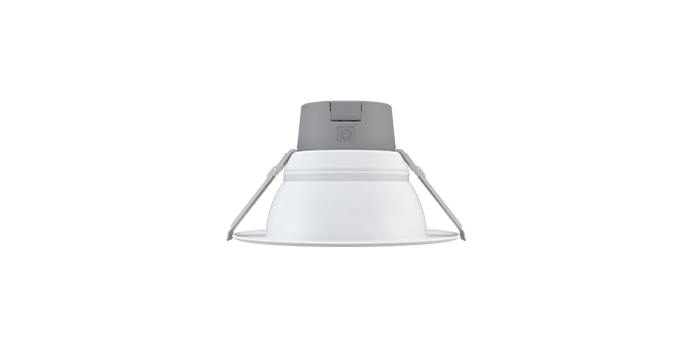

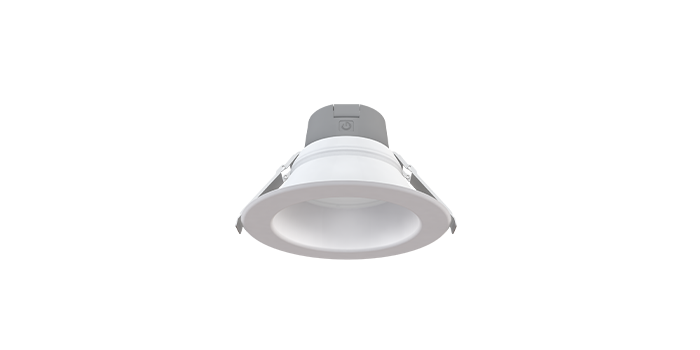

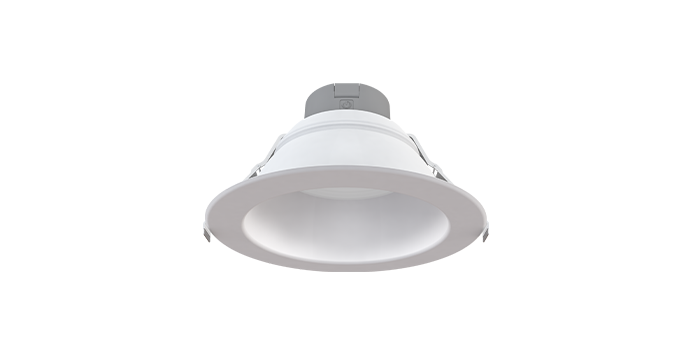

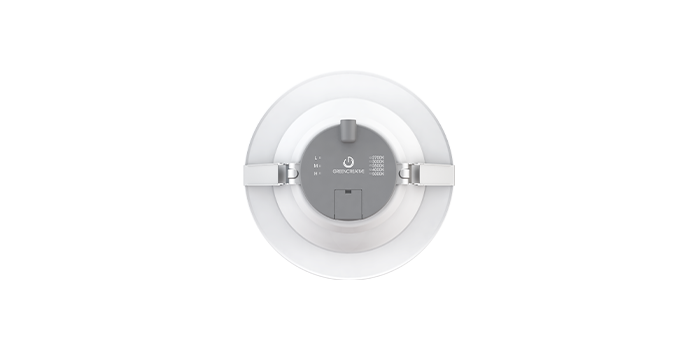

Multiple Sizes

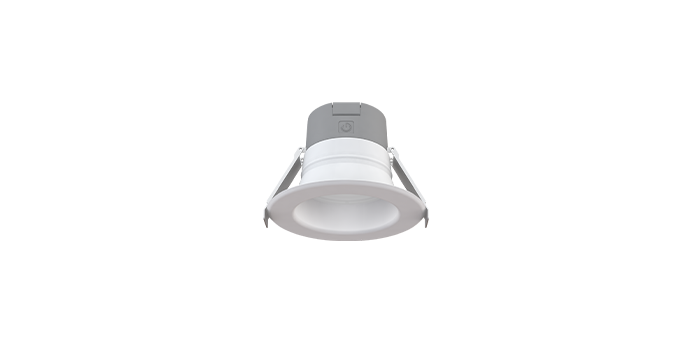

4″
6″ and 6″ HO

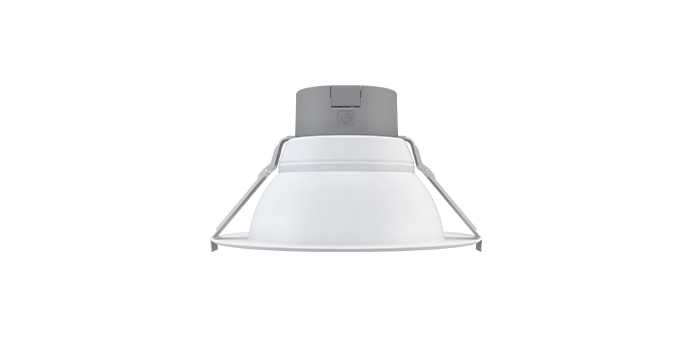

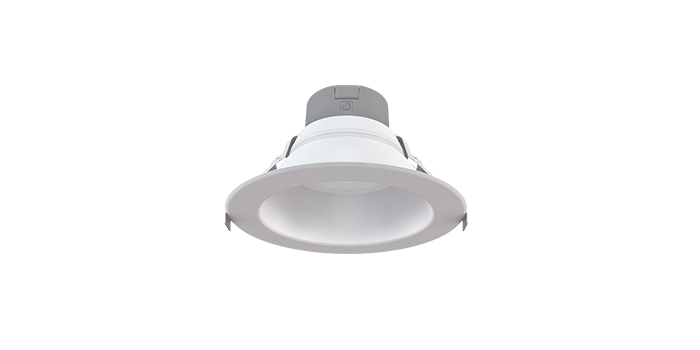

8″ and 8″ HO

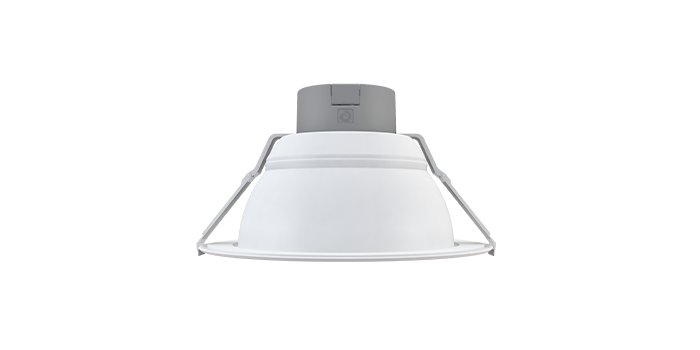

9.5″
Wide Range of CCT and Lumen Options

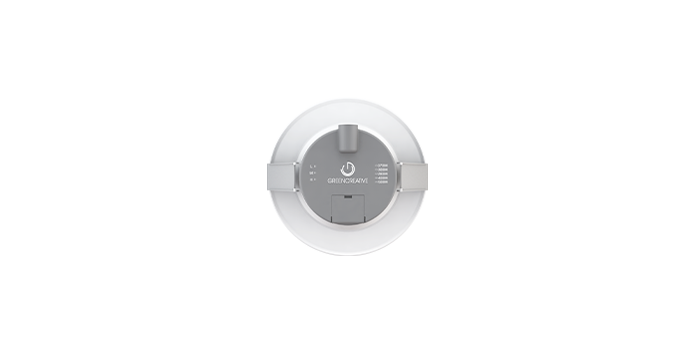

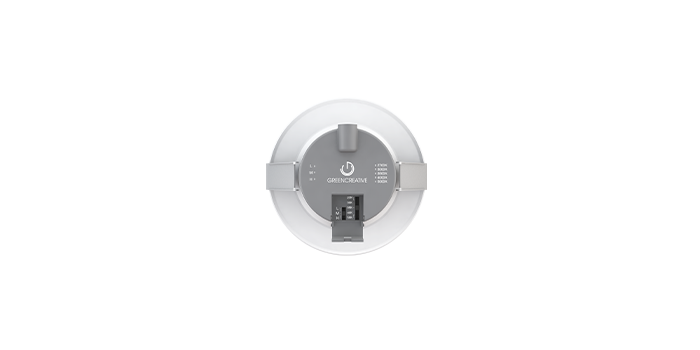

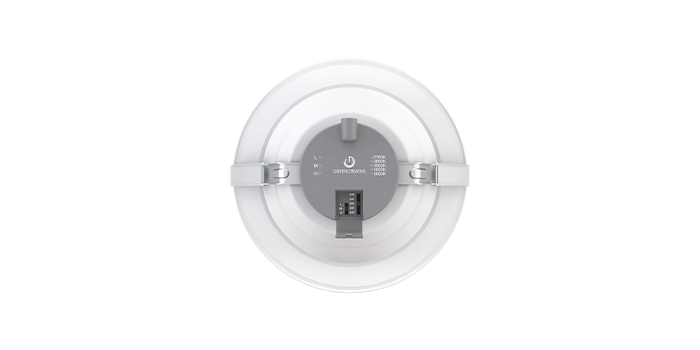

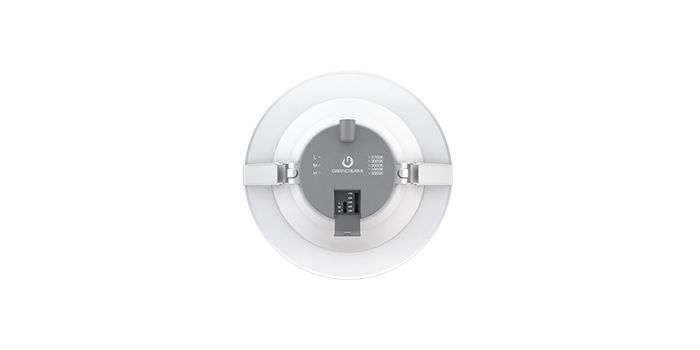

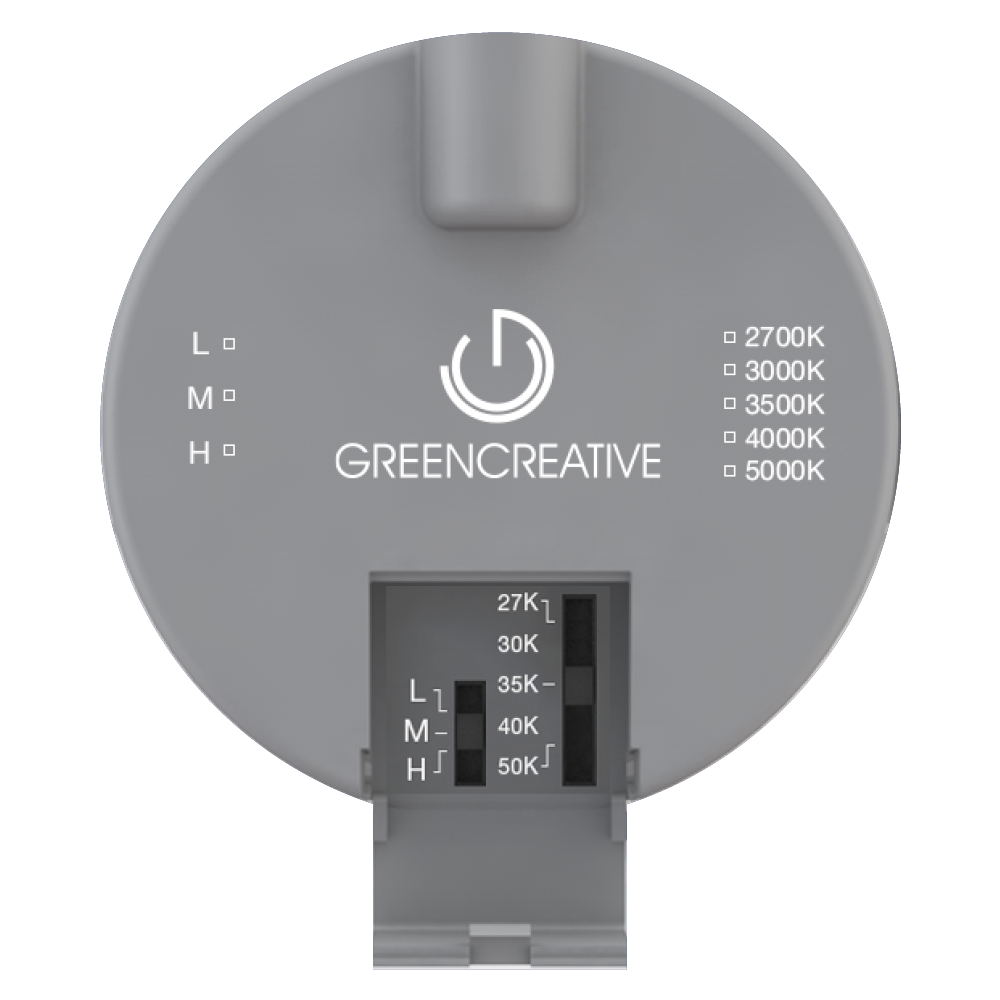

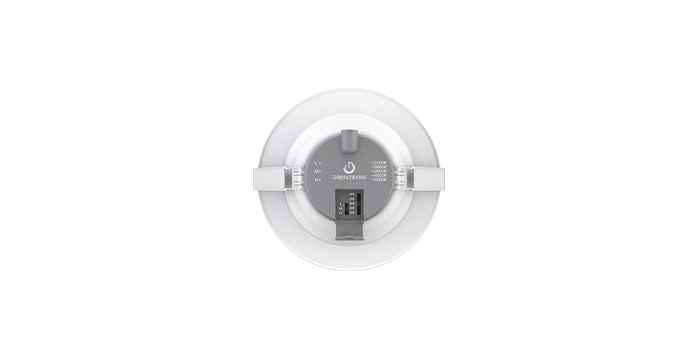

Innovative lock cover for CCT and power settings ensures your settings are always the right ones, maximizing rebates opportunity while minimizing field discrepancies, thanks to the Factory or Field Lockable CCT and Power.
Get the right amount of light with SELECTFIT still powered by SelectDrive technology. Choose from Low, Medium or High light outputs. With just the flip of switch, ensure that every space has just the right amount of light from 600lm to 5000lm.
Get the right amount of light with SELECTFIT still powered by SelectDrive technology. Choose from Low, Medium or High light outputs. With just the flip of switch, ensure that every space has just the right amount of light from 600lm to 5000lm.
Dimming Made Easy. FIT for Any Space.

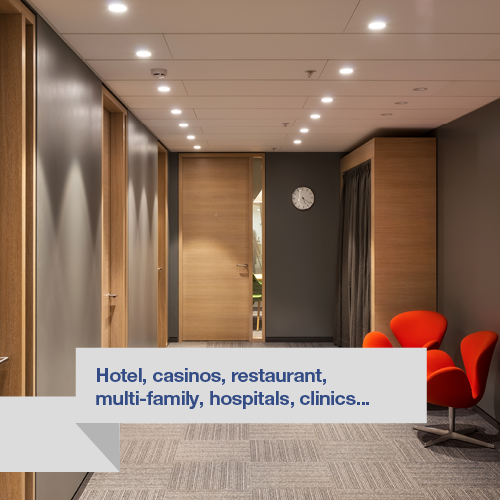

All SELECTFIT products are suitable for 120-277V input and feature our DualDim technology allowing the luminaire to be dimmed with either 120V TRIAC/ELV or 0-10V controls. Taking the guesswork out of auditing an existing space and providing optimal flexibility while minimizing un-expected installation issues in the field. Whether your project is residential, commercial, mixed-use, new construction or remodel, SELECTFIT will FIT.
Perfect Performance at Any Height

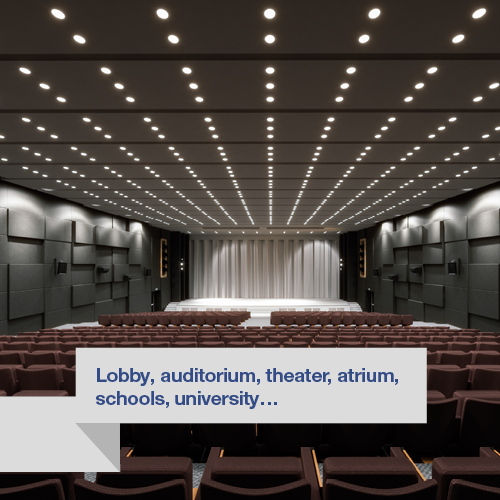

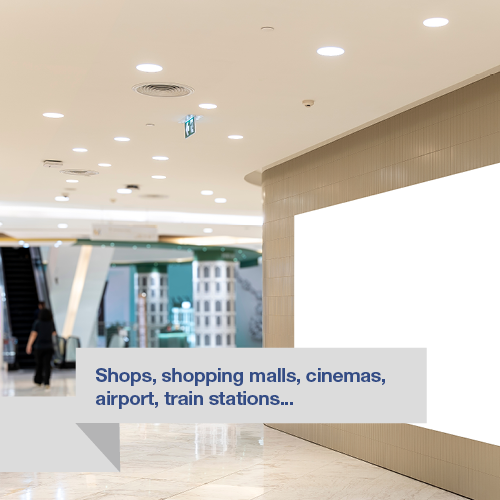

With SELECTFIT you can get the right amount of light for any project. Ranging from 600lm to 4,500lm, SELECTFIT will fill any existing space. The 6″ and 8″ are now offered in high output versions perfectly suited for high ceilings, such as auditorium, atrium, lobby, mall, theater, cinema, hallway, train station, airport and so on. The long lifetime and superior heat dissipation, on IC or non-IC rating models, will ensure you a maintenance free installation with a fast ROI and exceptionally long lifetime.
Specify further with Accessories, Emergency Options & NUROAir Control
SELECTFIT also offers tool-less field-installable accessories to give designers additional options. The additional Trims, Wall Washer, Goof Rings or New Construction Frame, ensure that SELECTFIT G3 will integrate in any spaces and decor. Push the envelope and maximize saving with the optional NUROAir controls, sensors and switches available with SELECTFIT G3. Quick and easy field installable inverters are available when emergency backup is needed, with optional tape test switch available for flange installation.
