Description

CCT Select T8 Double Ended Bypass 8ft

CCT Select T8 8ft

Sales Sheet

Quick Facts

  • Replaces F96T8/F96T12 fluorescent lamp
  • Integral driver suitable for 120-277V
  • Designed in 2 connectable 4' parts
  • Swappable lamp bases between Fa8 and R17d
  • Five field selectable color temperatures
  • Three field selectable power output levels
  • Double ended installation in bypass mode
  • PET film coated and NSF certified
  • L70 rated lifetime of 50,000 hours
  • 5 year standard warranty

4FT in the Box, 8FT in Use

Say goodbye to the hassle of transporting and installing cumbersome 8ft tubes. Split in 2 connectable parts, with five selectable CCTs, three selectable power levels and swappable lamp sockets, combined with powerful 5500lm light output, the upgraded 8ft LED tube provides more convenient and superior alternative for retrofitting traditional 8ft T8 and T12 fluorescent lamps.

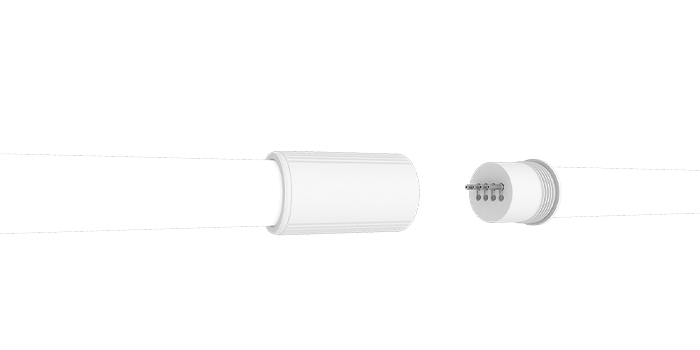

Designed in 2 Connectable Parts

Engineered in two separate connectable 4ft parts, the LED tube can easily connect into one 8ft tube in the field. This innovative design brings significant savings on shipping and storage cost as well as reducing the risk of breakage during transit.

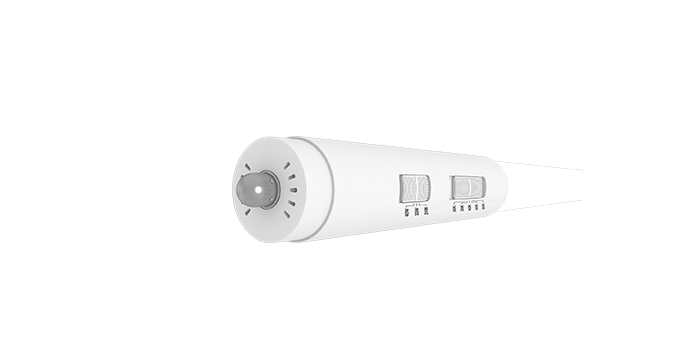

5 Selectable Color Temperatures and 3 Selectable Power Levels

The integral SelectKelvin switch allows for five selectable light colors in the field from 3000K, 3500K, 4000K, 5000K and 6500K. Whether you are seeking warm light for a cozy and relaxing atmosphere or cool light for a more energetic and productive environment, the SelectKelvin switch has you covered with only one single product.

The integral SelectDrive switch allows for three selectable power levels in 24W, 32W and 40W, catering to your specific needs for different lighting design and energy savings requirements in the project.

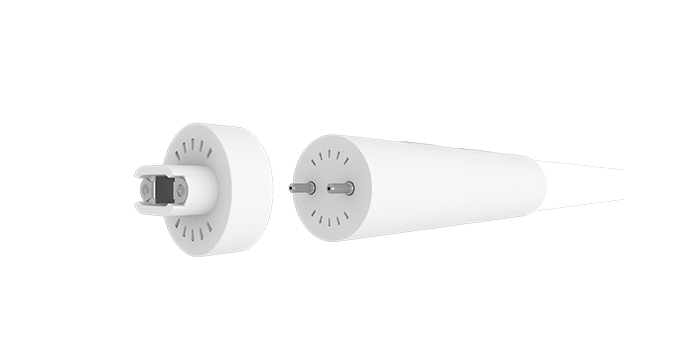

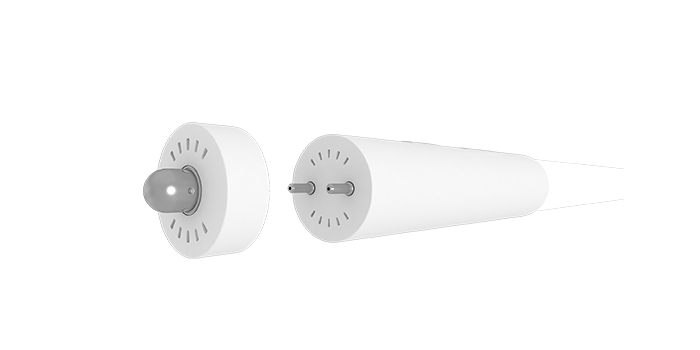

Swappable Lamp Bases Design

Lamp bases are conveniently swappable between Fa8 and R17d, with Fa8 single-pin bases pre-assembled as standard, and R17d recessed double-contact bases supplied additionally, giving you the freedom to effortlessly adapt to any existing lamp holders in the field.

Powerful and Robust

The 8ft LED tube delivers powerful 5,500lm light output with great efficacy up to 138 LPW. PET coated glass improves resistance to breakage. Suitable for double ended installation in bypass mode, the tube is featured with L70 rated lifetime of 50,000 hours, guaranteed with standard 5-year warranty with optional 10-year warranty available.

Contact Us (866) 774-5433

Follow Us

Facebook
Twitter
YouTube
LinkedIn

Additional information

Model Number

40T8/8F/8CCTS/DEB/SD/C

Color

White

Base

Recessed double contact (R17d), Single pin (Fa8)

Warranty

5 Year

CCT

6500K, Selectable, 3000K, 3500K, 4000K, 5000K

Lumens

5200, 5500

Equivalent Wattage

F96T12, F96T8

LPW

130, 138

Beam Angle

170°

CRI

80

Dimming

No

Rated Lifetime (Hours)

50,000

Voltage

120-277V

Enclosed

Yes

DLC

Yes

Environmental Location

Damp

Finish

White

Dimension (Shape)

8'

Power

40W

Product Number

38105

New

Yes
