Quick Facts

  • BABA Compliant
  • 17W-32W fluorescent replacement
  • High efficacy up to 150 LPW
  • BYPass installation-Work directly off line voltage
  • L70 rated lifetime up to 60,000 hours
  • Shatterproof plastic housing
  • UL classified & FCC compliant
  • Utilizes existing lampholders – Non-Shunted or Shunted
  • UEB - Suitable for both single ended and double ended bypass installations

BABA Compliant T8 UEB Linear LED Tubes

Upgrade your fluorescent lamps in government-funded projects with our BABA-compliant T8 UEB tubes. Available in 2′, 3′, and 4′ sizes with 1,150 to 2,700 lumen output levels, these energy-efficient tubes are designed to directly replace 17W–32W fluorescent lamps with ease. Enjoy reliable performance, significant energy savings, and versatile compatibility – perfect for retrofitting projects and general lighting applications requiring BABA compliance.

BABA Compliant – For U.S. Government-Funded Projects & Contracts

The Build America, Buy America (BABA) Act was enacted as part of the Infrastructure Investment and Jobs Act of 2021 to emphasize the use of American-made products in infrastructure projects funded by Federal financial assistance.

To comply with the BABA Act, products must be manufactured in the United States, with the cost of domestic components exceeding 55 percent of the total component cost. This stipulation is known as the Buy America Requirement.

Our BABA-compliant LED tubes are fully qualified for all federal procurements, not just infrastructure, where the federal government is providing financial assistance. Choosing our BABA solutions enables you to participate in government-funded projects and contracts, expanding your market opportunities, and enhancing your competitive advantage of winning bids.

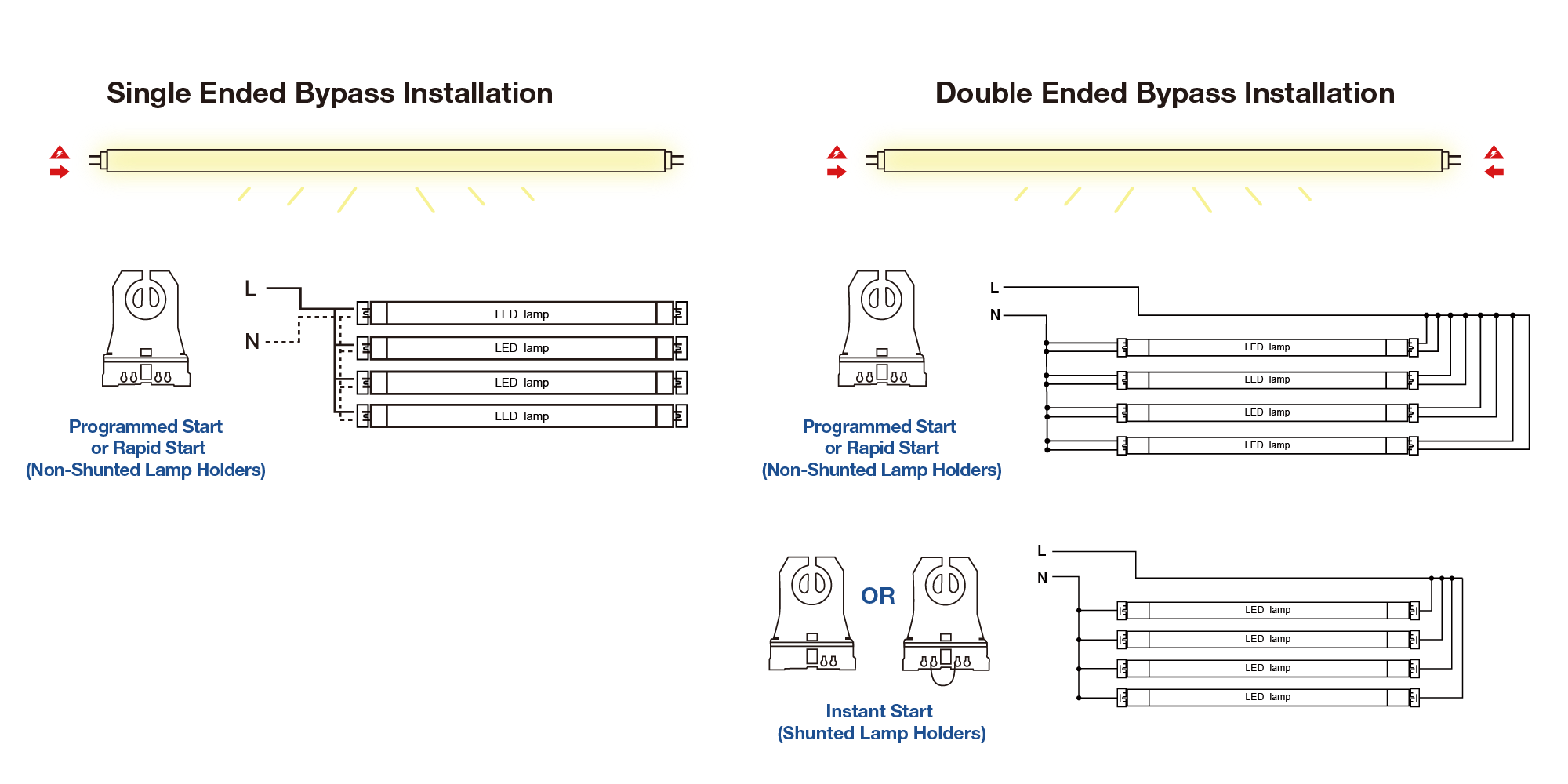

UEB – Single and Double Ended Bypass Installations

The lamps are designed for both single-ended and double-ended installations, compatible with existing shunted or non-shunted lamp holders—eliminating the need for pre-inspection to determine installation compatibility.

Innovative Safety Switch – Protection Enhanced

GREEN CREATIVE UEB lamps are equipped with an innovative fail safe mechanism that prevents the electrical circuit from activating until the lamp is securely installed in both of the fixture sockets.

Follow Us

Facebook
Twitter
YouTube
LinkedIn

Additional information

Warranty

5 Year

Model Number

12T8/3F/840/UEB/BABA, 12T8/4F/840/UEB/BABA, 15T8/4F/840/UEB/BABA, 18T8/4F/840/UEB/BABA, 8T8/2F/840/UEB/BABA

Color

White

Base

Medium Bi-Pin G13

CCT

4000K

Lumens

1150, 1600, 1800, 2200, 2700

Equivalent Wattage

17W, 25W, 32W

LPW

133, 144, 147, 150

Beam Angle

220°

CRI

80

Rated Lifetime (Hours)

60,000

Voltage

120-277V

Enclosed

Yes

Energy Star

No

JA8

Exempt

DLC

Yes

Environmental Location

Damp

Dimension (Shape)

2', 3', 4'

Power

12W, 15W, 18W, 8W

Product Types

Bypass (Type B)

Finish

White

Dimming

Yes, TRIAC/ELV

TITLE 20

Product Number

38776, 38777, 38778, 38779, 38780
