Description

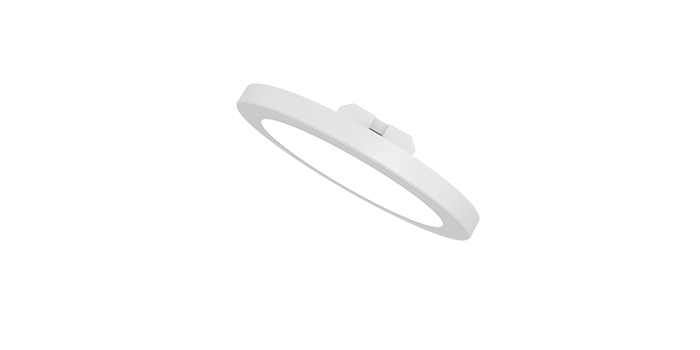

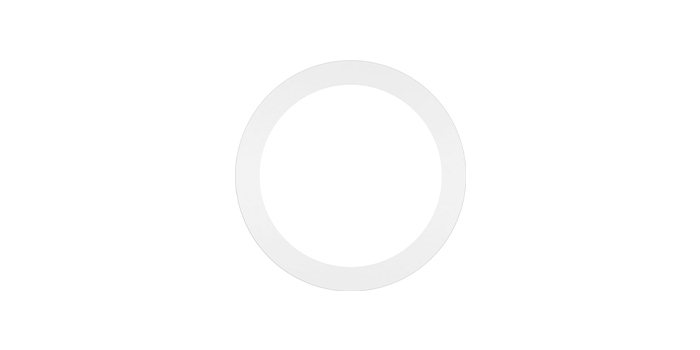

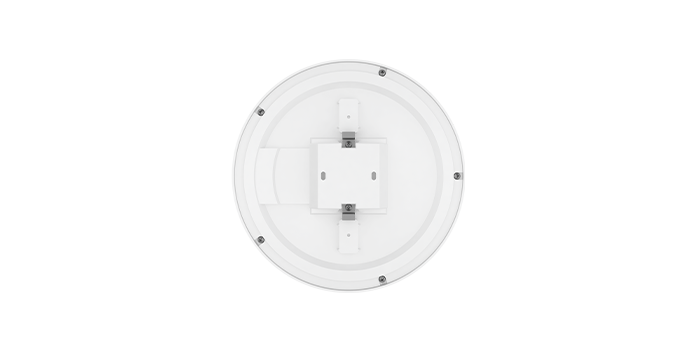

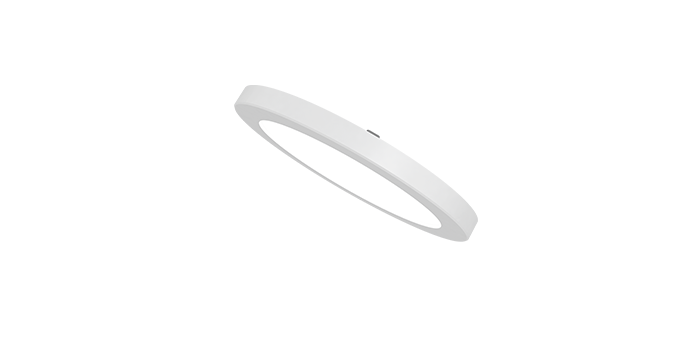

SLIMFIT 7″ SURFACE MOUNT DOWNLIGHT

SLIMFIT Leaflet Cover

Sales Sheet

Quick Facts

  • SelectKelvin Technology - Choose from 5 CCTS
  • Super Shallow Design - Only 0.55" from below the ceiling
  • Wet Location, IC and Air-tight Rated
  • Fits most 4" J-Boxes and 4", 5-6" recessed housings
  • 0-10V or Forward and Reverse Phase Dimming
  • Edge Lighting Technology

  • Surface Mount Downlight in 5″, 7″ and 9″ sizes
  • Delivering light output from 820lm to 1250lm for general lighting applications
  • Shallow fixture depth blends into ceilings
  • Five field selectable CCTs in 2700K, 3000K, 3500K, 4000K, and 5000K
  • Edge lighting technology with PMMA light guide eliminates lens yellowing
  • 90 CRI with 4-steps SDCM binning
  • Air-Tight, IC and Wet Location rated

Five Selectable Color Temperature

SelectKelvin technology enables easy selection of five color temperatures from 2700K, 3000K, 3500K, 4000K and 5000K in the field, creating customized ambience and adapting to the mood of the space with just the flip of a switch.

Two Installation Options

Direct mount in new construction with a 4″ junction box or retrofit into existing recessed housings.

Contact Us (866) 774-5433

Follow Us

Facebook
Twitter
YouTube
LinkedIn

Additional information

Model Number

SLMFT7/9CCTS/DIM010UNV, SLMFT7/9CCTS/DIM120V

Color

White

Warranty

5 Year

CCT

Selectable, 2700K, 3000K, 3500K, 4000K, 5000K

Lumens

1000

LPW

83

Beam Angle

110°

CRI

90

Rated Lifetime (Hours)

50,000

Voltage

120V, 120-277V

Energy Star

Yes

JA8

Yes

DLC

No

Environmental Location

Wet

Dimension (Shape)

7"

Power

12W

Dimming

Yes, 0-10V, 120V, TRIAC/ELV

Product Number

38401, 38404

Finish

White

Coming Soon

Yes
