Description

CCT Select T8 Universal Ended Bypass

CCT T8 UEBC Leaflet

Sales Sheet

Tube Selection Guide

Selection Guide

Quick Facts

  • BYPass installation-Work directly off line voltage
  • 17W-32W fluorescent replacement
  • High efficacy up to 170 LPW
  • PET coated glass improving resistance to breakage
  • L70 rated lifetime up to 60,000 hours
  • UL classified & FCC compliant
  • UEB - Suitable for both single ended and double ended bypass installations
  • SelectKelvin Technology - Field selectable 3000K / 3500K / 4000K / 5000K / 6500K CCT
  • Utilizes existing lampholders – Non-Shunted or Shunted

10 SKUs In One

The CCT Select T8 UEB lamps provide five field-selectable color temperatures for both single ended and double ended installations with only one product. 10 field configurable models offered by only 1 product in stock.

Five Selectable Color Temperature

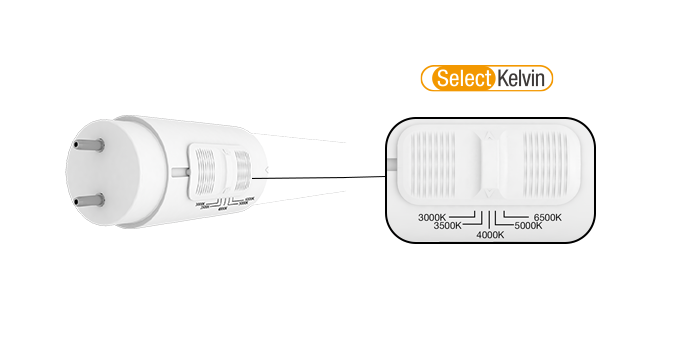

The integrated SelectKelvin switch allows lighting professionals to choose CCTs based on their project’s requirements, adding optimized flexibility to each project.

3000K

Warm White Light

3500K

Neutral White Light

4000K

Cool White Light

5000K

Day Light

6500K

Cool Day Light

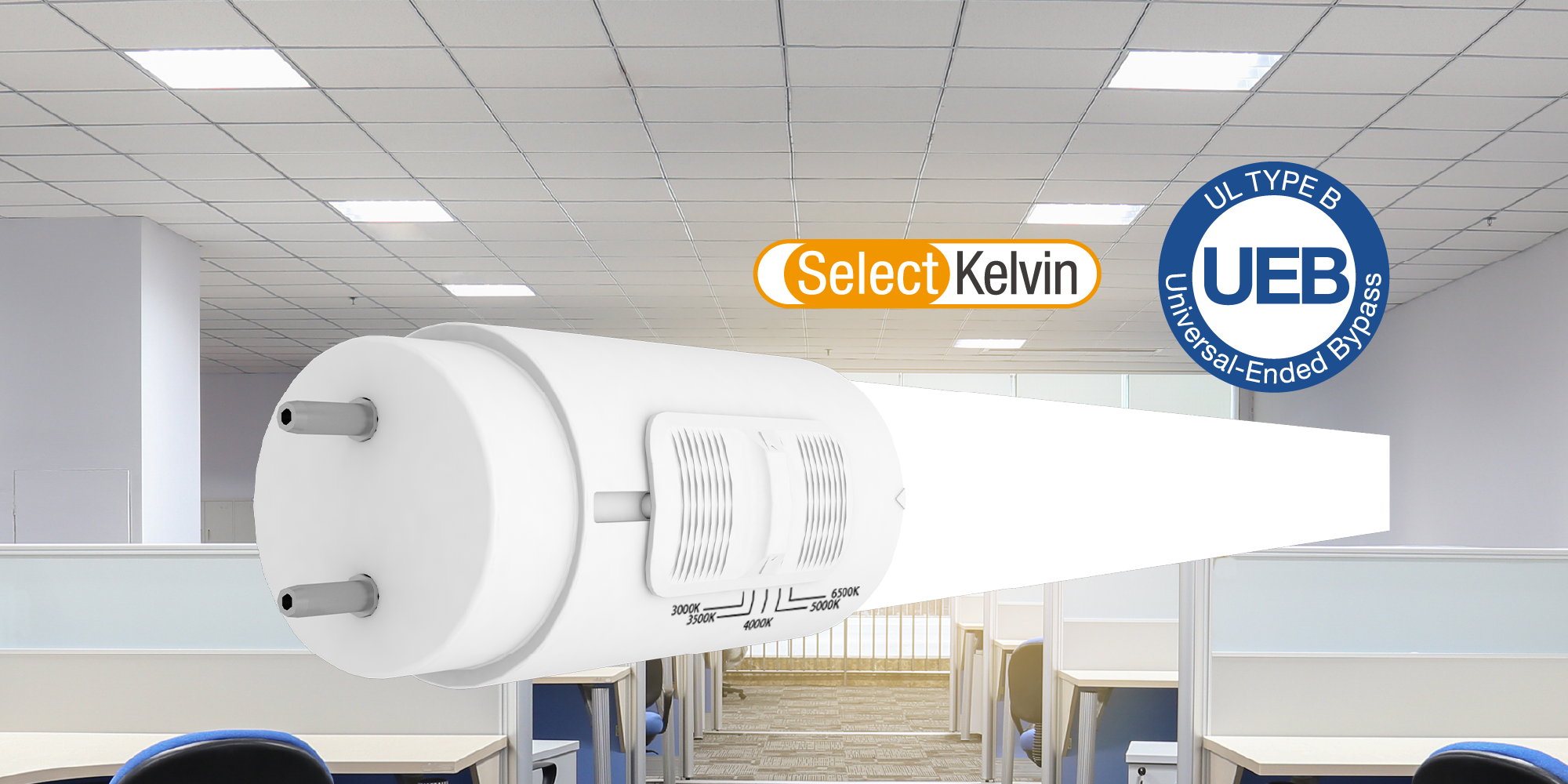

UEB – Single Ended And Double Ended Bypass Installations

The lamps are engineered for both single ended and double ended installations, utilizing existing shunted or non-shunted lamp holders.

Removing the trouble of pre-inspection for installation feasibilities.

Innovative Safety Switch – Protection Enhanced

GREEN CREATIVE UEB lamps are equipped with an innovative fail safe mechanism that prevents the electrical circuit from activating until the lamp is securely installed in both of the fixture sockets.
