Quick Facts
- HYBrid installation - UL Type A+B
- 32W fluorescent replacement
- Directly work with existing ballast if compatible
- Operate on 120-277V line voltage without ballast
- Utilizes existing Non-Shunted or Shunted lampholders
- PET Coated glass improving resistance to breakage
- L70 rated lifetime up to 60,000 hours
- High efficacy up to 150 LPW
- SelectKelvin Technology - Field selectable 3000K / 3500K / 4000K / 5000K / 6500K CCT
- UEB - Suitable for both single or double ended installations in BYPass mode
![](https://greencreative.com/wp-content/uploads/DLC-2022-New.png)
![](https://greencreative.com/wp-content/uploads/NSF-80x80px.png)
![CCT T8 HYB 01](https://greencreative.com/wp-content/uploads/CCT-T8-HYB-01.png)

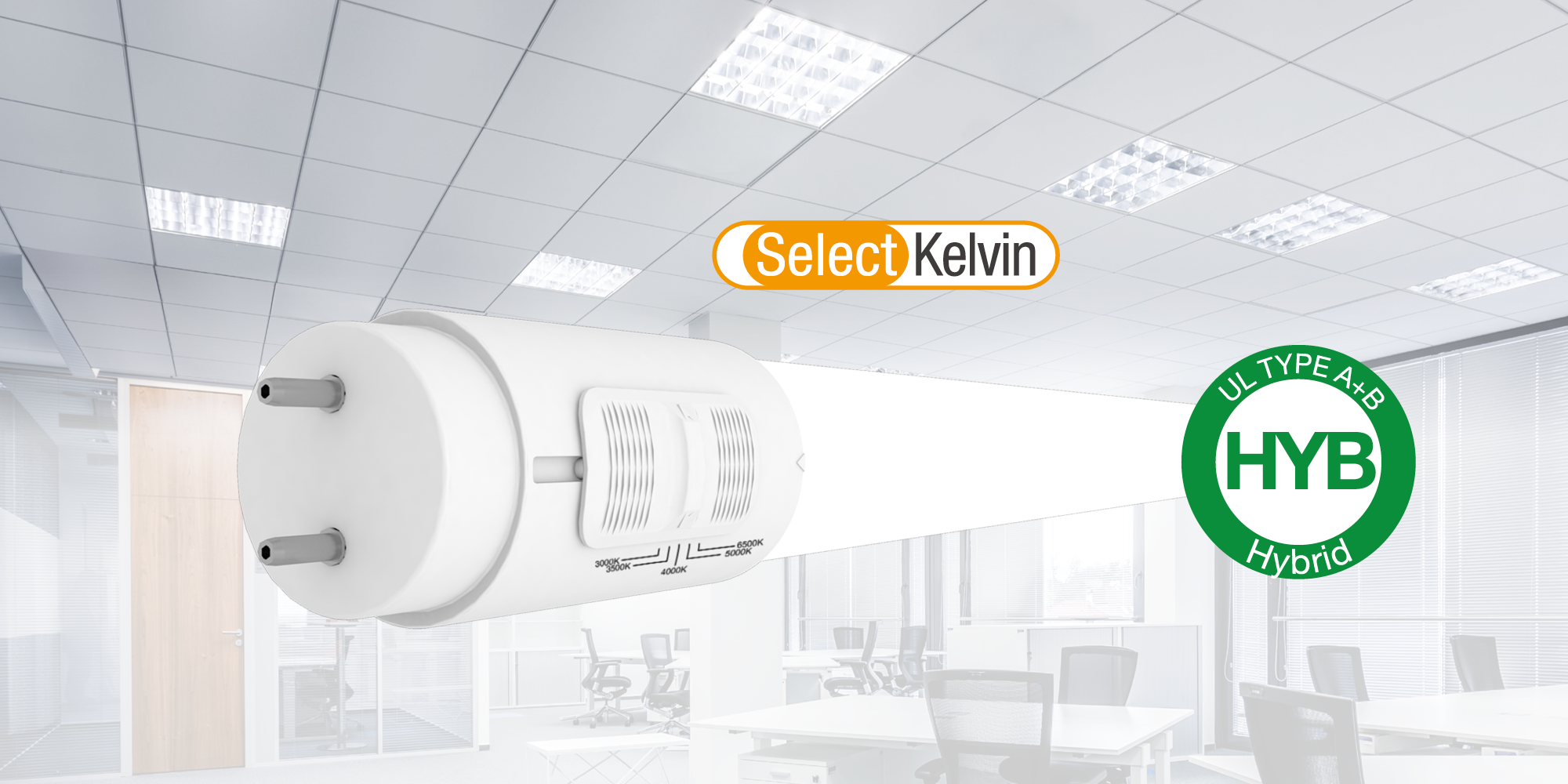

The Ultimate Retrofitting Solution
Equipped with an integrated CCT select switch and suitable for both Direct and Bypass installations, the CCT Select T8 Hybrid (UL Type A+B) lamp serves as the ultimate retrofitting solution, streamlining your options for upgrading linear LED fixtures.
For Both Direct and Bypass Installations (UL Type A+B)
This tube’s seamless compatibility with both direct and bypass installations guarantees effortless integration into your current lighting system. Experience a hassle-free plug-and-play retrofitting process if your existing ballast is compatible.
If not, bypassing is also quick and easy, so no need to worry.
Direct Installation – Working with Existing Fluorescent Ballast
![CCT-T8-HYB-Direct-01 CCT-T8-HYB-Direct-01](https://greencreative.com/wp-content/uploads/CCT-T8-HYB-Direct-01-500x175.png)
Bypass Installation – Working off Line Voltage without Ballast
(UEB – Single or Double Ended Installation)
![CCT T8 HYB Bypass](https://greencreative.com/wp-content/uploads/CCT-T8-HYB-Bypass.png)
Five Field-Selectable Color Temperatures
Designed with integrated CCT switch, these lamps allow for convenient in-field selection from five color temperatures of 3000K, 3500K, 4000K, 5000K and 6500K. Without changing the lamp, you can easily switch to warm light for creating a cozy and relaxing atmosphere, or cool light for more energetic and productive environment. Maximize the adaptability in usage while minimizing stock management cost.
![CCT T8 HYB Switch](https://greencreative.com/wp-content/uploads/CCT-T8-HYB-Switch.png)
![3000K](https://greencreative.com/wp-content/uploads/3000K.png)
3000K
Warm White Light
![3500K](https://greencreative.com/wp-content/uploads/3500K.png)
3500K
Neutral White Light
![4000K](https://greencreative.com/wp-content/uploads/4000K.png)
4000K
Cool White Light
![5000K](https://greencreative.com/wp-content/uploads/5000K.png)
5000K
Day Light
![6500K](https://greencreative.com/wp-content/uploads/6500K.png)
6500K
Cool Day Light
Innovative Safety Switch – Protection Enhanced
GREEN CREATIVE UEB lamps are equipped with an innovative fail safe mechanism that prevents the electrical circuit from activating until the lamp is securely installed in both of the fixture sockets.
![Safety-Switch-Design](https://greencreative.com/wp-content/uploads/Safety-Switch-Design.png)
