Description

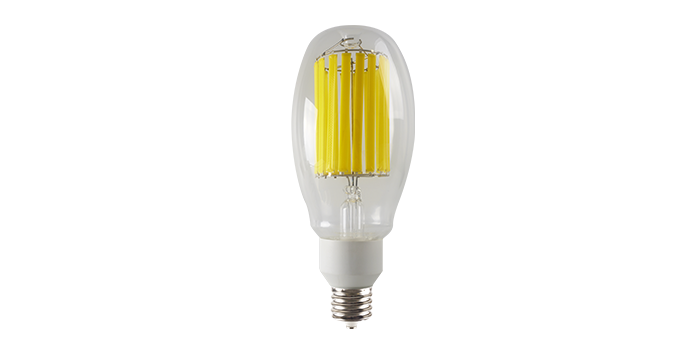

ED28 FILAMENT HID 45W 277V EX39 DIM

Filament HID Replacement

Sales Sheet

Quick Facts

  • 175W HID Replacement
  • Smooth TRIAC/ELV dimming at 120V
  • High efficacy up to 167 LPW
  • L70 rated lifetime up to 50,000 hours
  • Integral driver suitable for 120-277V
  • Fully omnidirectional 360° beam angle
  • Integral surge protector
  • Thermal protection against overheating
  • Suitable for use in totally enclosed fixtures
  • Designed in classic ANSI HID form factor

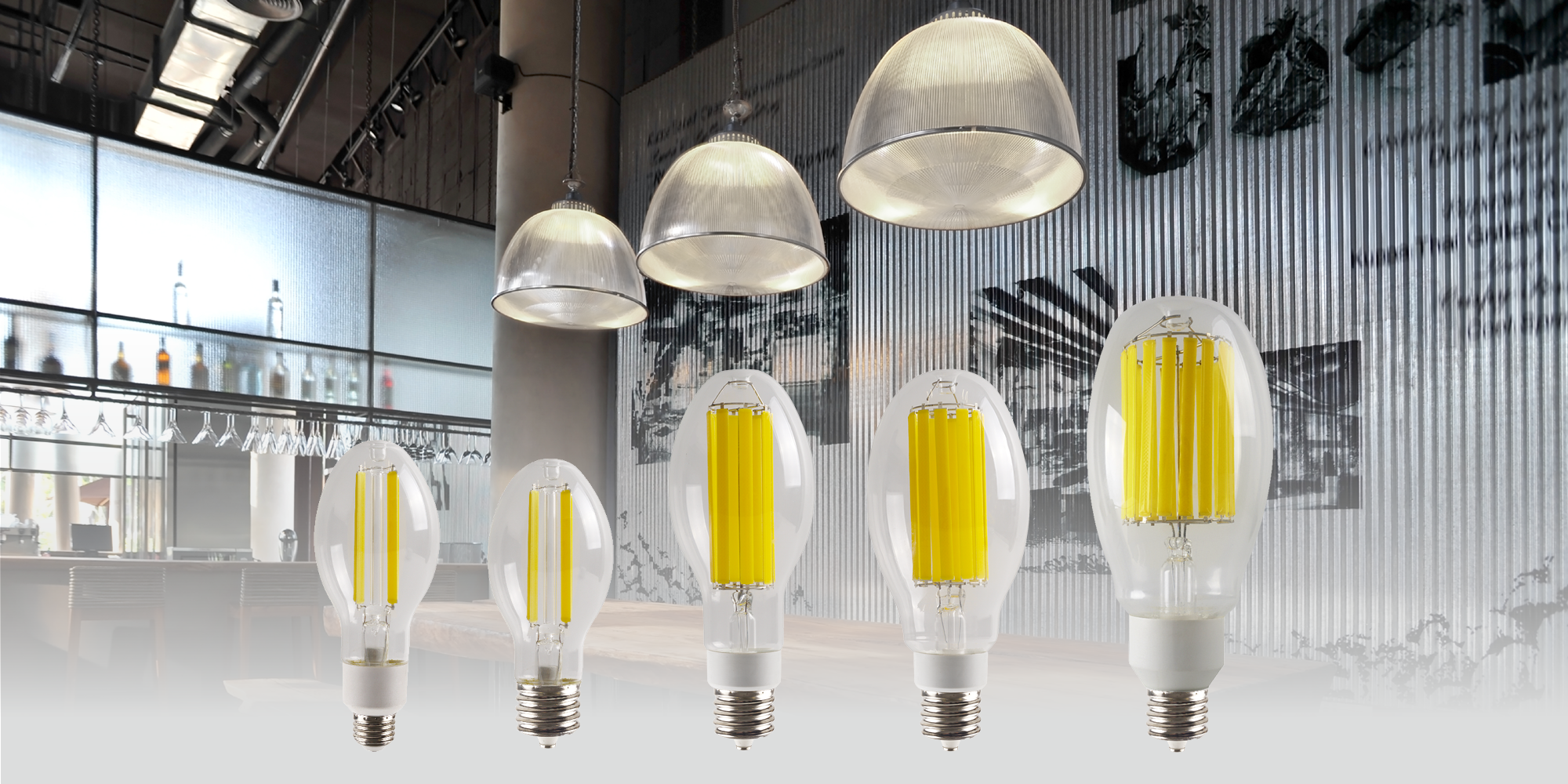

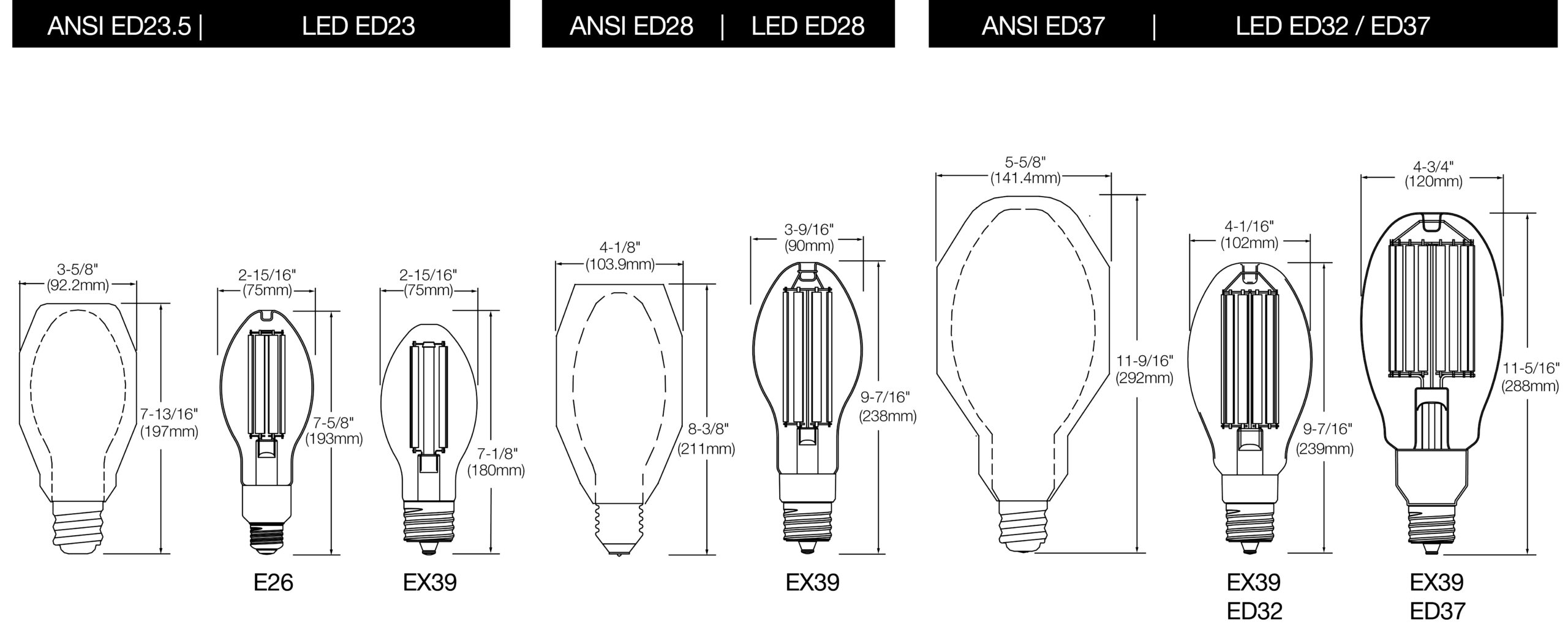

Classic ANSI HID Form Factor

Crafted in the classic ANSI HID form factor, the series of HID Replacement Filament LED lamps are an excellent replacement for outdated Metal Halide and High-Pressure Sodium lighting in indoor and outdoor fixtures.

Superior Light Output with Outstanding Efficacy

With a maximum light output of 10,000 lumens and an exceptionally high efficacy of 185 LPW, these lamps provide optimal energy saving solutions for a wide range of HID upgrading projects with low operating cost and faster ROI.

ED23 E26
4,000lm  160lm/W
4000K / 5000K
300W Inc. Equiv.

ED23 EX39
4,000lm  160lm/W
4000K / 5000K
125W HID Equiv.

ED28 EX39
7,500lm  167lm/W
4000K / 5000K
175W HID Equiv.

ED32 EX39
10,000lm  185lm/W
4000K / 5000K
320W HID Equiv.

Suitable for Various Lighting Fixtures

With 360o omni-directional lighting effect, these HID Replacement Filament LED lamps aesthetically light up your space in various enclosed and non-enclosed lighting fixtures, indoor and outdoor.

Area Light

Post Top

Wall Pack

Bollard

Lantern

High / Low Bay

Contact Us (866) 774-5433

Follow Us

Facebook
Twitter
YouTube
LinkedIn

Additional information

Model Number

45FHIDDIM/ED28/840/277V/EX39, 45FHIDDIM/ED28/850/277V/EX39

Color

White

Base

E39, EX39

Warranty

5 Year

CCT

4000K, 5000K

Lumens

7500

Equivalent Wattage

100-175W HID

LPW

167

Beam Angle

360°

CRI

80

Dimming

Yes, 120V, TRIAC/ELV

Rated Lifetime (Hours)

50,000

Voltage

120-277V

Enclosed

Yes

Energy Star

No

Environmental Location

Damp

Finish

Clear

Dimension (Shape)

ED28

Power

45W

Product Number

38101, 38102

DLC

Yes

Coming Soon

Yes
