GREEN CREATIVE Recessed Downlight Collections

» Download in Excel

» Download in PDF

MULTIFIT Flat

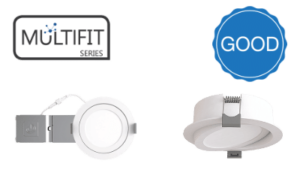

MULTIFIT Gimbal

MULTIFIT Cloud

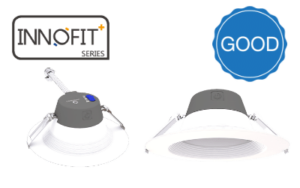

INNOFIT G2

INNOFIT Plus

SELECTFIT G2

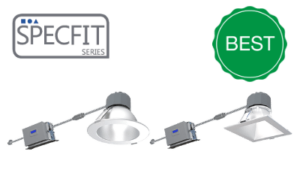

SPECFIT Retrofit

NYX

SPECFIT New Construction
MULTIFIT Flat MULTIFIT Gimbal MULTIFIT Cloud INNOFIT G2 INNOFIT Plus SELECTFIT G2 SPECFIT Retrofit NYX Series SPECFIT New Construction
  • Light commercial
  • Shallow design
  • Flexible dimming
  • Light commercial
  • Gimbal design
  • Flexible dimming
  • Light commercial
  • Cloud design
  • Flexible dimming
  • Contractor selection
  • Selectable lumens
  • Great value
  • Better flexibility
  • High efficacy
  • Optimized stock
  • Greater selections
  • Options of optics
  • Flexible dimming
  • Best commercial
  • Specification grade
  • Options of optics and controls
  • Multiple reflectors finishes
  • Choice of optics
  • Flexible dimming
  • Best commercial
  • Specification grade
  • Options of optics and controls
Application Retrofit / Remodel Retrofit / Remodel Retrofit / Remodel Retrofit / Remodel Retrofit / Remodel Retrofit / Remodel Retrofit / Remodel New Construction New Construction
Size 4″ 6″ 6“ HO 8″ 8″ HO 4″ 6″ 4″ 6″ 6″ HO 6″ 8″ 4″ 6″ 8″ 9.5″ 4″ 6″ 6″ HO 8″ 8″ HO 9.5″ 4″ 6″ 8″ 9.5″ 4″ 6″ 4″ 6″ 8″ 9.5″
Installation Options
New Construction Frame ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
New Construction with IC Cover — — — — — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — —
Shape
Round ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — ✔ ✔ ✔ ✔ — —
Adjustable — — — — — ✔ ✔ — — — — — — — — — — — — — — — — — — — — — — — — —
Technology
— — — — — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — — — ✔ ✔ — — — —
— — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
DualDim ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ — — — — ✔ ✔ — — — —
Specification
Max. Lumens @40K 670 770 1,110 1,510 2,000 650 910 650 910 1,110 1,600 2,120 1,400 2,100 3,000 3,650 880 1,650 2,900 2,100 4,200 4,000 2,650 5,200 5,200 5,200 2,000 4,000 2,650 5,200 5,200 5,200
Max. LPW @40K 80 83 76 88 84 78 91 78 91 76 123 125 117 131 130 130 91 97 97 97 97 100 84 87 87 87 100 100 84 87 87 87
Voltage 120-277V 120-277V 120-277V 120-277V 120-277V 120-277V

or 120V

 120-277V

or 120V

 120-277V 120-277V 120-277V

or 120V

 120-277V 120-277V

or 120V
CCT Field Selectable CCT

27K/30K/35K/40K/50K

 Field Selectable CCT

27K/30K/35K/40K/50K

 Field Selectable CCT

27K/30K/35K/40K/50K

 Dedicated CCT

35K/40K

 Field Selectable CCT

30K/35K/40K

 Field Selectable CCT

27K/30K/35K/40K/50K

 Dedicated CCT

27K/30K/35K/40K/50K

 Field Selectable CCT

27K/30K/35K/40K/50K

 Dedicated CCT

27K/30K/35K/40K/50K
CRI min. 90 min. 90 min. 90 min. 80 min. 80 min. 90 min. 90 (Standard)

min. 97 (Optional)

 min. 90 min. 90 (Standard)

min. 97 (Optional)
LED Binning (SDCM) ≤4 ≤4 ≤4 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
Reflector Depth Very Shallow N.A. N.A. Shallow Shallow Deep Very Deep Deep Very Deep
L70 Calculated Lifetime (Hrs) 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000
IC-Rated ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — ✔ — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Air Tight ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Wet Location ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
ETL ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Energy Star ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Title 24 / JA8 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ — — — — ✔ ✔ — — — —
Dimmability
Forward & Reverse Dimmable @120V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — — ✔ ✔ — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
0-10V Dimmable ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Optic
Wide Beam (>90°) ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Medium Beam (60°-70°) — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ ✔ — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Narrow Beam (40°) — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
Very Narrow Beam (25°) — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
Spot Beam (15°) — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
Wall Wash — — — — — — — — — — — — — — — — ✔ ✔ ✔ — — — — — — — ✔ ✔ — — — —
Reflector Options
White — — — — — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔ — —
Clear — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Black — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — — ✔ ✔ — —
White Baffle — — — — — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — —
Black Baffle — — — — — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — —
Flange Options
White ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔ — —
Clear — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Black — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — — ✔ ✔ — —
Flangeless — — — — — — — ✔ ✔ ✔ — — — — — — — — — — — — — — — — — — — — — —
Control Options
Philips EasySense — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Lutron Athena Node — — — — — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — —
Lutron EcoSystem — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
Enlighted Compact Sensor — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
Emergency Options
GREEN CREATIVE 23W Emergency Driver ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ — — — — ✔ ✔ — — — —
Philips 6W Emergency K-Case — — — — — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ — — — —
Fulham 25W Emergency Inverter ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Factory Installed 10.7W Emergency Driver — — — — — — — — — — — — — — — — — — — — — — ✔ ✔ ✔ ✔ — — ✔ ✔ ✔ ✔
Warranty
5 Year Standard Warranty ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
10 Year Optional Warranty ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
