A patented modular socket design and embedded universal driver
make the PinFit suitable for any PL Lamp retrofit application.
The PinFit PL Omni drives evolution in retrofitting. A patent pending modular socket design and embedded universal driver make the PinFit PL Omni suitable for any PL Lamp retrofit application. The proprietary modular socket design allows for easy switch of the lamp socket from G24q to G24d in the field for great installation versatility. An embedded universal driver allows the lamp to perform in electronic ballast, magnetic ballast, or no-ballast environments, providing optimal field flexibility. The lamps can be installed either vertically or horizontally for 360° light distribution. 6.8W and 9W PinFit lamps available in four color temperatures replace most CFLs. UL classified and listed for both direct and bypass installations.
Versatility In Installation

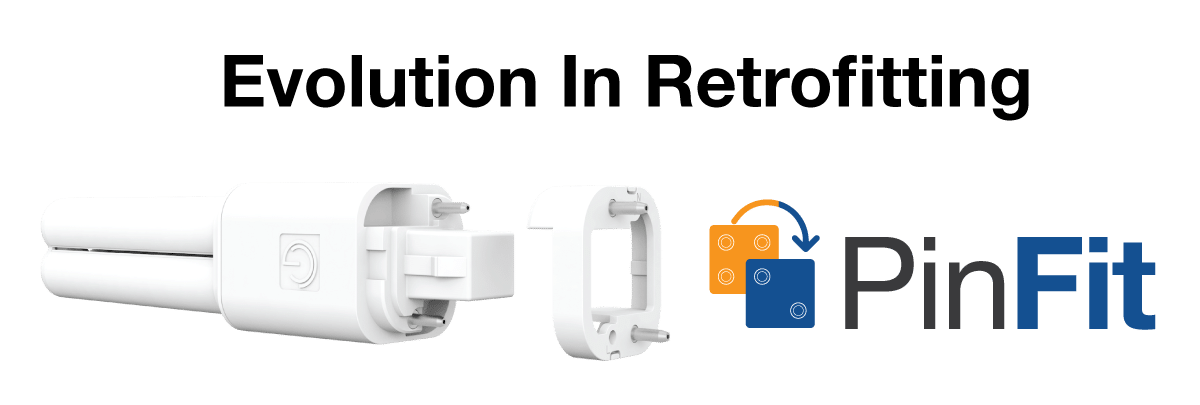

The revolutionary modular socket design of the PinFit PL Omni allows easy switch of the lamp socket from G24q to G24d in the field, offering great installation versatility.
Simply use a screwdriver to pry open the buckle and remove the modular socket and the transformation from a 4 pins lamp to a 2 pins lamp is done.
Optimal Field Flexibility
An embedded universal driver allows the PinFit PL Omni to perform in electronic ballast at 4 pins mode, and magnetic ballast or no-ballast environments at 2 pins mode, providing optimal field flexibility for both direct and bypass installations with only one lamp.
Greatly reduce the cost of stock management and installation labor. No more headaches for the un-expected ballast compatibility issues or different wiring needs in the field.

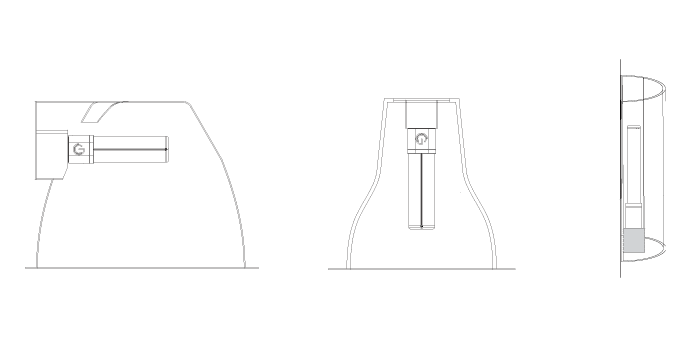

Omnidirectional Lighting
The lamps can be installed either vertically or horizontally with 360° omni-directional light distribution, creating uniform and pleasant lighting effect equivalent to fluorescent lamps.
Industry Compatibility
The series of lamps are available in 6.8W and 9W models, four color temperatures of 2700K, 3000K, 3500K and 4000K options, suitable for replacing most 13W-26W CFLs with G24d, GX24d, G24q & GX24q bases. All the lamps are UL classified for both direct and bypass installations, with L70 rated lifetime of 50,000 hours and guaranteed by 5-year warranty.
6.8W PinFit PL Omni
13W-18W CFL Replacement
720 – 800 Lumens
2700K, 3000K, 3500K, 4000K
9W PinFit PL Omni
26W CFL Replacement
1,050 – 1,150 Lumens
2700K, 3000K, 3500K, 4000K
